SPRW
Wire spiraling machines
Machine settings by product recipes including spiraling pitch, bobbin selection, machine speed for friendly operator use.
No manual wire tension checks or setting.
Possible to change wire tension with machine stopped or in operation.
No change gears or mechanical variator.
Accurate and reliable wire tension control from 10 to 60 N which remains absolutely constant regardless of bobbin weight, machine speed, ambient conditions or winding quality.
"MULTIWIRE"
type SPRW 250/24
- No. of Bobbins: Up to 24 Bobbins
- Dimensions: Flange Diameter 254 mm., Traverse 153 mm., Overall width 184 mm
- Wire capacity: 30 Kg
- Wire type: Up to five ends high tensile carbon steel wire (2450 - 3300 Nmm2)
- Wire size: from 0.3 mm. to 0.7 mm
- Max deck speed : 140 R.P.M.
- Hose size range: id 6.3 to 32 mm
- Machine output up to 12 m/min
"SINGLE or TWIN WIRE"
type SPRW 250/96
- No. of Bobbins: Up to 96 Bobbins
- Dimensions: Flange Diameter 254 mm., Traverse 153 mm., Overall width 184 mm
- Wire capacity: 30 Kg
- Wire type: Single Or Twin ends high tensile carbon steel wire (2450 - 3300 Nmm2)
- Wire size: from 0.38 mm. to 2 mm
- Max deck speed : 110 R.P.M.
- Hose size range: id 6.3 to 75 mm
- Machine output up to 12 m/min.
"MULTIWIRE”

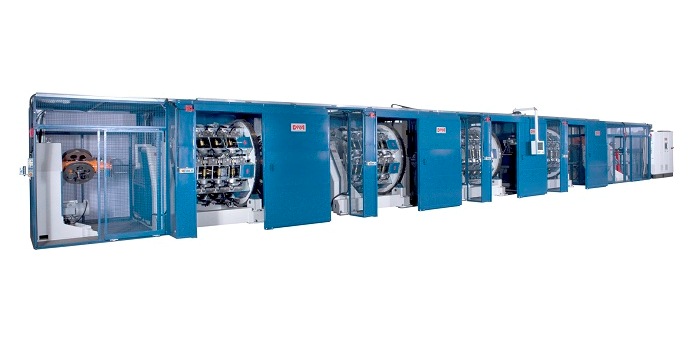

type SPRW 250/32
- No. of Bobbins: Up to 32 Bobbins
- Dimensions: Flange Diameter 254 mm., Traverse 153 mm., Overall width 184 mm
- Wire capacity: 30 Kg
- Wire type: Up to five ends high tensile carbon steel wire (2450 -2750 Nmm2)
- Wire size: from 0.3 mm. to 0.7 mm
- Max deck speed : 130 R.P.M.
- Hose size range: id 6.3 to 75 mm
- Machine output up to 12 m/min.
